Werner 10K Mega Swivel Anchors with Cast in Place Straight Loop Inserts
The Werner Reusable Concrete Anchor is a lightweight, easy to use bolt providing convenient anchorage in concrete. The anchor requires a pre-drilled hole of 3/4 inch and 3-1/2 inch minimum depth in 3000 psi concrete. It can be used in any direction as a fall protection anchor and is reusable with its easy to insert and remove design. View More
Out of stock
Product Code
Werner_10K_Mega_Swivel_Anchors_Cast_in_Place_Straight_Loop
Werner 10K Mega Swivel Anchors with Cast in Place Straight Loop Inserts
| Model Number | Part Description | Type AP |
|---|---|---|
| A510021 | Straight Loop Insert for 10K Mega Swivel Anchor - Pack of 25 | 10K Mega Swivel |
| A510022 | 10K Mega Swivel Anchor with Bolt for Straight Loop Insert | 10K Mega Swivel |
| A510023 | Replacement Bolt for 10K Mega Swivel Anchor to Attach to Straight Loop Insert - Pack of 25 | 10K Mega Swivel |
Werner 10K Mega Swivel Anchors with Cast in Place Straight Loop Inserts

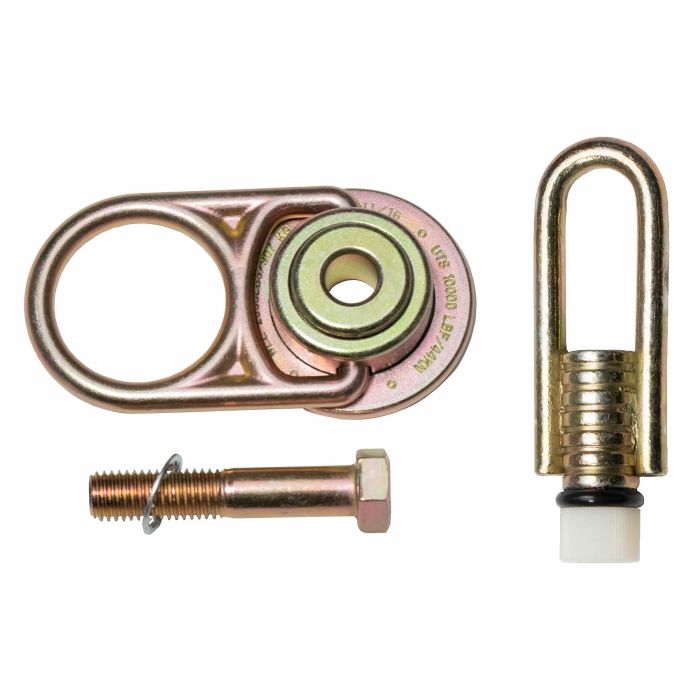

The Werner A510022 10K Mega-Swivel with Straight Loop Insert Bolt attaches to the Werner A510021 Straight Loop Insert that was cast-in place during construction of the surface. The Mega-Swivel is made of steel and plated for corrosion resistance. Includes 5/8 inch bolt and lock washer. The Mega-Swivel design allows full range of motion.
The Werner A510021 Straight Loop Insert is a pre-installed receptacle that is cast in place during construction of the surface for the purpose of attaching a 10K Mega-Swivel anchor once the concrete is cured. Includes Straight Loop Insert and all installation components. Pack of 25.Features:
- Lightweight design is easy to insert and remove
- Drill hole of 3/4 inch with 3-1/2 inch minimum depth
- Minimum 3000 psi concrete
- Multi-directional use
- Minimum Breaking Strength(MBS): 5,000 pounds
- Meets ANSI and OSHA Standards
| Weight(LBS) | 0.000000 |
|---|---|
