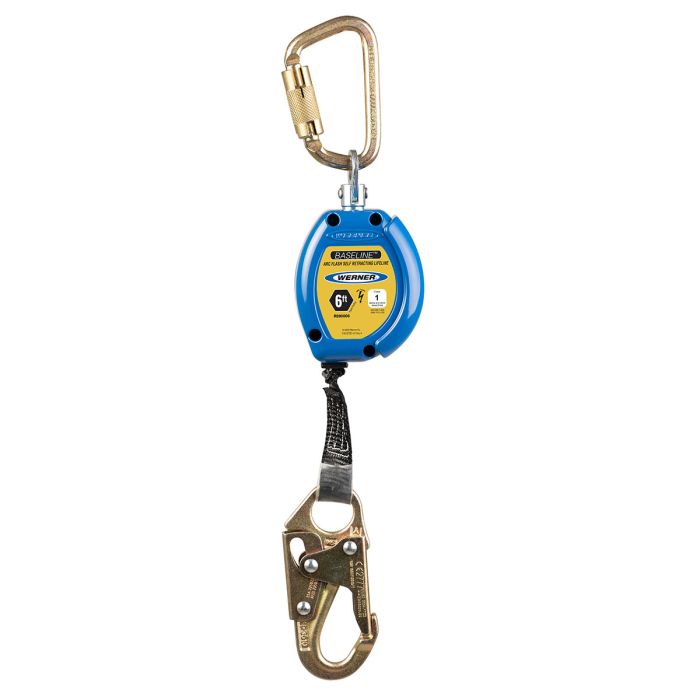

Werner Class 1 Baseline Arc Flash Self-Retracting Lifelines
The R5900 Series Baseline Arc Flash Self-Retracting Lifeline is specifically designed for applications with potential exposure to an electric arc.
View More
Werner Class 1 Baseline Arc Flash Self-Retracting Lifelines
| Model Number | Length | Lanyard End Connector | Unit Connector | Material |
|---|---|---|---|---|
| R590006-R | 6' | Aluminum Rebar Hook | Carabiner | Aramid Webbing |
| R590006 | 6' | Steel Swivel Snap Hook | Carabiner | Aramid Webbing |
| R590006-TB | 9' | Tie Back Hook | Carabiner | Aramid Webbing |
The R5900 Series Baseline Arc Flash Self-Retracting Lifeline is specifically designed for applications with potential exposure to an electric arc. The SRL is designed with 1-inch Aramid webbing to meet the ASTM F887 requirements for Arc Flash, and the ANSI z359.14 and OSHA 1926 & 1910 Fall Protection requirements. The lifeline extends and retracts automatically during typical use. A brake activates in the event of a fall, stopping the worker at a short distance while limiting fall arrest forces. Designed to enhance safety performance and productivity, Baseline Arc Flash features an impact-resistant Aluminum housing to protect the working components in a compact, lightweight package. Baseline Arc Flash models feature recessed labels and ID Tags to ensure critical information remains with the unit for inspection. As an ANSI Class 1 device, the Baseline Arc Flash SRL is ideal for low-clearance applications.
Features:
- Meets ASTM F887 Arc Flash Requirements
- Minimizes Fall Arrest Distance to less than 24 inches when used overhead
- Aramid webbing design
- Impact-resistant aluminum housing with a swivel top
- Durable labels to aid inspection
- Meets ANSI z359.14, Class 1 and OSHA Standards
