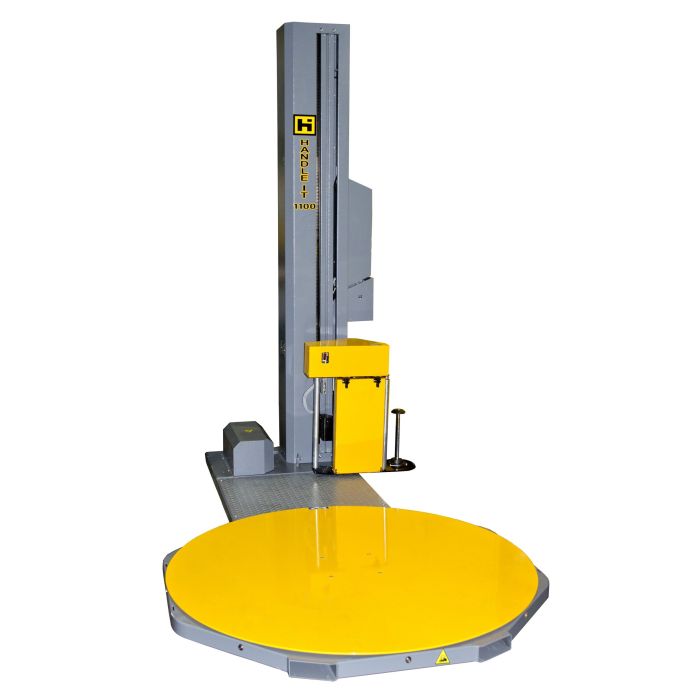

Handle-It SWM-SA-1100 1100 Semi-Auto Turntable Stretch Wrap Machine

Handle-It SWM-SA-1100 1100 Semi-Auto Turntable Stretch Wrap Machine

The Handle-It® Model 1100 offers top-of-the-line functions and features at a great price. It is ideal for those who are looking for an efficient stretch wrap turntable and pallet wrapping machine capable of handling high volumes of pallets per day.

Heavy duty frame construction for the most demanding jobs. Integrated PLC controls with onboard diagnostics make repairs easier to identify and reduces downtime. Belt driven power pre-stretch carriage for added reliability . Heavy Duty carriage rollers and self lubricating turntable bearings. Password protection and one of the widest array of wrap cycle parameters available

Features:

• User-friendly integrated PLC control board
• Frequency controller for carriage and/or turntable speed adjustment
• Photocell for pallet height detection
• Electronically controlled power pre-stretch carriage- load sensor dynamically controls the application of film for consistent film stretch.
• Stop at home position
• Easily adjustable parameters such as bottom wraps, top wraps, carriage ascent & descent speed, film tension, & starting wrap height
• Quick selection of 6 main parameters or saved programs
• USB port to upload software and download settings, reports, and statistics
• 6 working cycles: ascent/descent, topsheet, only ascent, only descent, layers, and stack
• Storage of 32 end user programs
• On-board diagnostics
• 3 year warranty

Specs:

• 300 maximum average loads per day
• 86″ wrap height with 4” of overap total max height of 90″ optional -118″ extended height available.
• 4400lb maximum load weight capacity
• 250% power pre-stretch film carriage for improved efficiency
• Turntable speed 3-12 RPM
• 59″ Turntable size
• 110v standard plug
• Machine size 104″L x 59″ W x 97″ H
