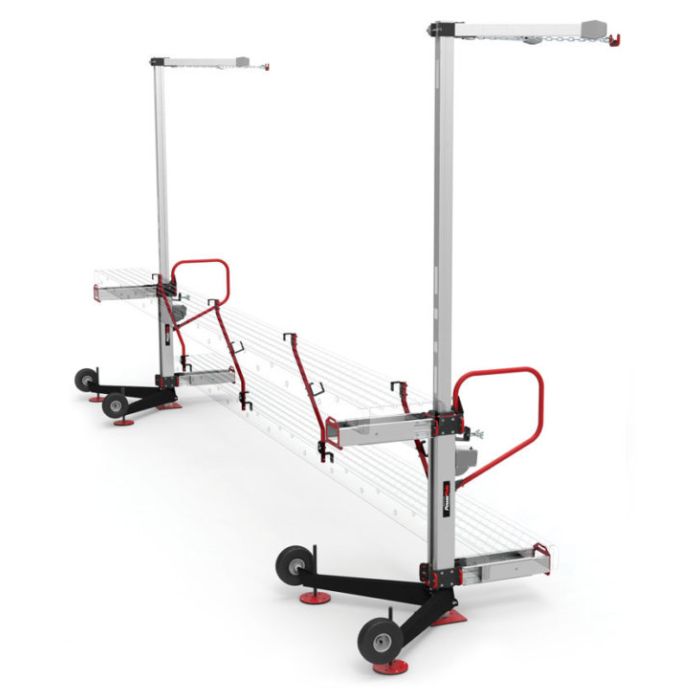

Reechcraft PowerPole Scaffold Jack and Personnel Lift System - Pump Jack Substitute
With the Reechcraft PowerPole, traditional pump jack systems are a thing of the past. Our streamlined design gains you access between buildings, on rooftops, around landscaping and more. The PowerPole scaffold and pump jack system is perfect for contract work on residential areas.
The PowerPole's low set-up costs, high portability, ability to work in tight spots and landscape-friendly design increases efficiency while on any project. See how the ReechCraft PowerPole scaffold and electric pump jack system can make work faster, easier and safer!
PowerPole's streamlined design makes work on siding, roofing, windows and more safer than traditional pump jack systems. Not only does our drill-powered gearbox prevent injuries from pumping fatigue, it also makes climbing 3x times faster. Look forward to safe climbing, secure mid rails and stable outriggers when you use the PowerPole.
Streamlined
- Climbs three times faster than a pump jack
- Non-marking v-brace for added support
- 6 ft and 12 ft pole section options
Safe and Stable
- Drill-powered design prevents pump injuries
- Midrail posts make walkboards secure
- Outrigger keeps you stable against wall
Flexible for You
- Can handle residential landscapes
- Special ties, v-braces and more available
- Basket offered, workable without wall ties
PowerPole Climbing Unit - 4022800The PowerPole Climbing Unit enables the climbing capabilities of the PowerPole System. Powered by a 1/2 in. drill, the 650 lb load-rated PowerTrak system offers extreme performance in a compact package, providing all the capacity needed to lift workers, tools and materials into position. Each climbing unit is equipped with a gearbox to power the unit and a drill brace to secure the drill. Build your own system by bolting on your choice of platform supports and accessories for a wide variety of tasks. New for 2019, the PowerPole gearbox includes an integrated overspeed brake for added safety.
PowerLatch Assembly - 4022771Upgrade the PowerPole Climbing Unit with this quick latch system. Quickly reconfigure the PowerPole for a variety of jobs by connecting or moving platform supports, a man basket or endrail system. Transporting the PowerPole is easy since attachments are removed, leaving the slender and compact climbing unit on the pole. If you need ultimate flexibility on platform, attachment and transportation options, the PowerLatch is for you.
Platform Support - 4022772The Platform Support is used for dual mast configurations. With 11 in. of adjustment, this support accommodates a wide range of standard work platforms from 12 in. to 24 in.
Platform Support with PowerLatch Connector - 4022179The Platform Support is used for dual mast configurations and is installed with the PowerLatch Connector. With 11 in. of adjustment, the Platform Support is easily used with the PowerLatch Assembly to accommodate a wide range of standard work platforms from 12 in. to 28 in.
Single Man Basket - 4022756The PowerPole with Basket attachment is truly a product of its own. When used with the PowerPole Outrigger attachment, you can set up a single mast in a few minutes and work at heights of up to 24 ft with no wall ties. Other configurations allow heights up to 75 ft. The Basket features dual entry and a large 36 in. wide by 26 in. deep work area, providing ample working space for you, your tools and your equipment. The basket quickly attaches to the climbing unit via the PowerLatch interface. Choose the basket for fast single worker access.
Speedrail Midrail Post (2 Pack) - 4022785The midrails attach to the workbench and mount to the walkboard securely with a chain. The posts are placed 8 ft apart or less. Wooden 2×4’s are then mounted to the midrail post, to complete the midrail and toerail.
Speedrail Endrail (2 Pack) - 4022071The endrails fasten to the Climbing Unit with the PowerLatch.
PowerPole Standoff Tie - 4022432The Standoff Tie accommodates most pitch roof lines. Standoff line including valleys. It also makes a stable wall tie that will safely secure the PowerPole System to different types of buildings.
PowerPole Super Standoff Tie - 4022178The roof tie has extra long tubes to allow roof access. By placing the platform at roof level, the PowerPole Tilt-Up System can serve as roofline fall protection.
PowerPole V-Brace - 4022754The V-Brace tie is used in conjunction with the outrigger base, providing a stable rest for the top of the poles. This tie is light and easy to slide up and down the pole, even while attached to the system. The non-marking bumpers provide cushion for delicate wall surfaces while gripping to the wall for stability. Each V-Brace comes with a tie chain and wall anchor bracket for use above 24 ft. This V-Brace puts the center of the pole 33 in. from the wall.
PowerPole Extendable V-Brace - 4022629This brace allows you to extend an additional 18 in. and move in 2 in. increments, creating a total wall distance of 51 in. when fully extended. This assembly also folds for easy storage and comes standard with a 500 lb rated ratchet strap and wall anchor plate.
PowerPole 12' Pole Section - 4022084A PowerPole setup can be constructed in any combination of 6 ft and 12 ft poles. Using 12 ft pole sections will decrease the number of couplers to bolt together, creating a lighter assembly.
PowerPole 6' Pole Section - 4022435A PowerPole setup can be constructed in any combination of 6 ft and 12 ft sections. Using 6 ft Pole sections allows for more compact transport and storage, but increases the number of couplers to bolt together.
PowerPole Coupler - 4022096A PowerPole setup can be constructed in any combination of 6 ft and 12 ft sections. Use this 4 ft Pole Coupler to connect the mast sections by fastening and securing 8 3/8 in. x 3/4 in. bolts.
10" x 10" Base Foot - 4022465The 10 in. x 10 in. Base Foot attaches to the bottom of the base mast section. The belted rubber backing is durable and provides protection and solid footing during the setup process. The large area lowers the ground pressure for earthen surfaces. Each foot has two holes for pinning to the ground or larger sill plate. Pinning to the ground surface may not be required if secured by alternate means. Refer to the user manual for specific setup requirements.
PowerPole Outrigger - 4022791The PowerPole Outrigger makes setup and moving around a job site easy. The rugged steel stabilizers keep you pressed into the wall, allowing a 24 ft work height without tying into the structure. Each side of the Outrigger has a stabilizer that adjusts 8 in. to level the system. The assembly clamps onto the mast by hand and can be removed and folded for compact transport to the next job site.
