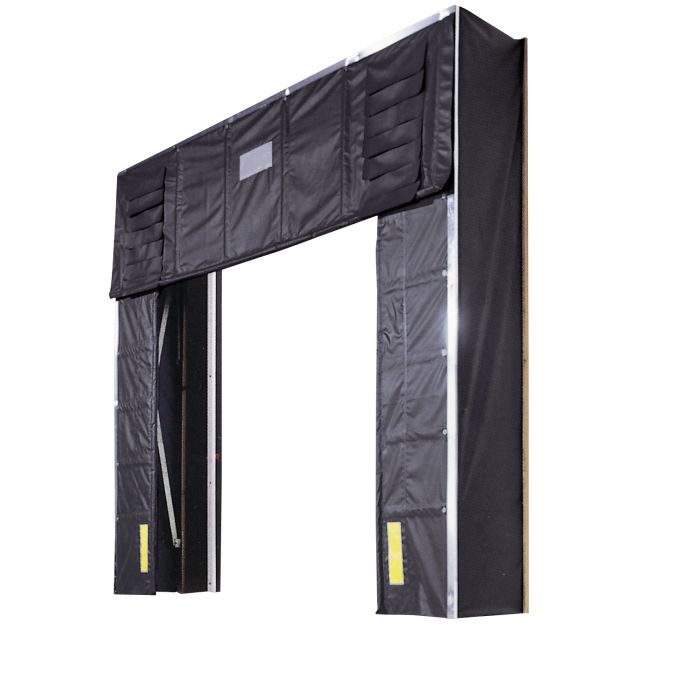

Vestil 9.5'W x 10.5'H Dock Seal and Shelter Combination with 8' x 10' Opening

Grouped product items
Model Number	Projection	Overall Height	Overall Width	Opening Size	Price	Qty
D-150/650-13	13"	10.5'	9.5'	8' x 10'	$1,241.89	+ -
D-150/650-20	20"	10.5'	9.5'	8' x 10'	$1,407.56	+ -
D-150/650-11	11"	10.5'	9.5'	8' x 10'	$1,193.27	+ -
D-150/650-18	18"	10.5'	9.5'	8' x 10'	$1,373.35	+ -
D-150/650-16	16"	10.5'	9.5'	8' x 10'	$1,336.45	+ -
D-150/650-14	14"	10.5'	9.5'	8' x 10'	$1,288.77	+ -
D-150/650-12	12"	10.5'	9.5'	8' x 10'	$1,215.86	+ -
D-150/650-19	19"	10.5'	9.5'	8' x 10'	$1,386.77	+ -
D-150/650-10	10"	10.5'	9.5'	8' x 10'	$1,164.51	+ -
D-150/650-17	17"	10.5'	9.5'	8' x 10'	$1,347.24	+ -
D-150/650-15	15"	10.5'	9.5'	8' x 10'	$1,314.84	+ -

Description

Important Note: Orders for this product will not go into production until an approval drawing has been signed for the product.

For use with an 8'W x 10'H door. Top (header) is constructed of wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114"W with a 30" drop curtain. Side (verticals) measure 120" tall and contain high density foam mounted to treated lumber. Once mounted, the face of the vertical will measure 12"W and will taper to 9-1⁄2" at wall. Verticals are mounted on wooden 2" x 12" to allowing wall mounting down the length of the vertical pieces. Applications with a flush dock to building in conjunction with an Edge-O-Dock use a 20" projection Dock Seal. Units are non-returnable.
